ISO-Z with double-deck cabin

You are here: Start » Products » Service lifts » ISO-Z

Service lift type ISO-Z

Service lift with swing doors and bi-parting doors in combination

Standard complies to the norm EN 81-3 and the machine directive 2006/42/EC

Standard basic equipment

Structure

  • Self-supporting steel structure
  • Made of cold rolled galvanized special profiles
  • Pre-installed in 2 m segments with guides T 45 x 5 mm

Cabin

  • Load capacity 100 — 300 kg
  • Up to 2 loading sides
  • Without or with safety gear
  • Width 500 — 1000 mm
  • Depth 600 — 1000 mm
  • Height 800 — 925 mm (per cabin)
  • Width, depth and height in 25 mm grid
  • Cant-off-system made of galvanized steel
  • On both sides adjustable guide shoes includig emergency guidance
  • Removable shelf made of galvanized steel in the upper cabin
  • Balancing devices on the suspension element

Bi-parting/Swing doors

  • Width 500 — 1000 mm
  • Height 800 — 925 mm
  • Width and height in 25 mm grid
  • Manual oprated
  • Made of galvanized steel

    Bi-parting doors (upper cabin):
  • Vertical bi-parting door
  • Aluminium door handle across the entire door width
  • In accordance to DIN 18092
  • Side frames made of galvanized steel
  • Door locks type-tested by TÜV-authorities

    Swing doors (lower cabin):
  • Single hinged swing door
  • Both hinging sides available
  • Sturdy plastic door handle
  • In accordance to DIN 18090
  • Frames made of galvanized steel
  • Door locks type-tested by TÜV-authorities

Machine room door

  • Width 500 — 1000 mm
  • Height 600 mm
  • Width in grid 25 mm
  • Door leaf made of galvanized steel (DW ≥ 800 mm = double hinged)
  • Both hinging sides available
  • Cam lock
  • Frames made of galvanized steel
  • Door leaf flush with door frame

Drive unit

  • Drive unit with worm gear and with factory oil filling
  • Standard motor IP 54
  • Disc brake
  • Hand wheel
  • 3 x 400 V / 50 Hz according to IEC
  • If with drive above in shaft and without safety gear
    Q = 100 kg: sheave Ø 300 mm for 2 or 3 ropes Ø 6 mm
    Q = > 100 — 300 kg: 2 chain wheels for 2 chains 5/8 x 3/8“ DIN 8187
    (Counter weight or balancing weight as galvanized frame construction with iron fills)
  • If the drive position is different form above in shaft and/or with saftey gear
    Q = 100 — 300 kg: drum Ø 240 mm 2 ropes Ø 5 or 6 mm

Controller

  • Microprocessor control SKG-AS-3
  • Plastic control cabinet 160 x 250 x 100 mm (W x H x D)
  • Call and send control 48 V
  • Safety circuit 230 V
  • Pre-wired with plugs
  • Adjustable and time-limited dispatch delay device
  • In the push button box of each landing:
  • One call and send button
    Acoustic arrival signal
    Location indicator
    Direction indicator
    Door "Open" indicator
    Error indicator
  • Thermic motor protection as main switch
  • Machine room light with switch and socket

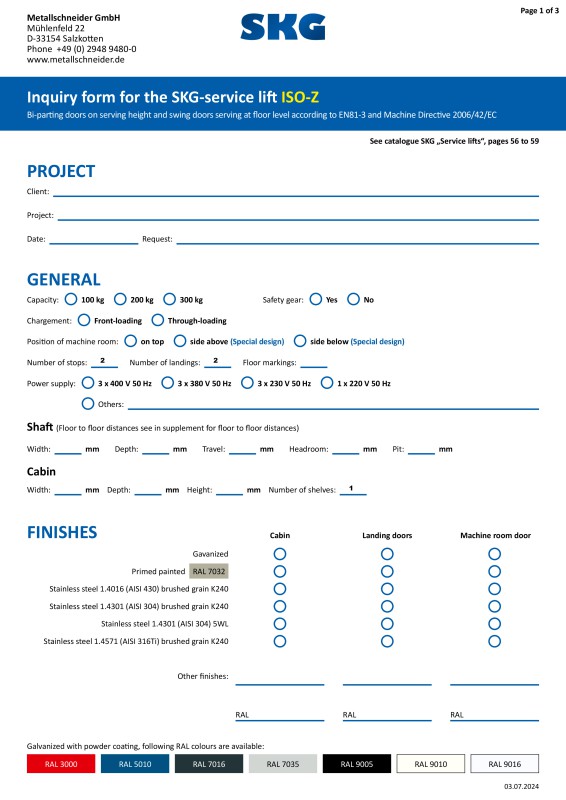

Downloads
